80 GALLON NORTHLAND TANK - S/S - JACKETED

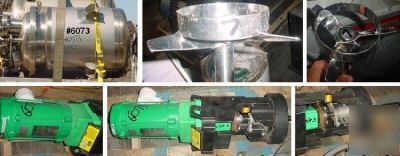

1 - used approx. 80 gallon Northland mix tank
T-304 stainless steel construction
Atmospheric internal pressure @ 176 deg. F MAWT
MIN. DMT -20 deg. F @ atmospheric pressure
Jacket rated 14.3 psi @ 176 deg. F MAWT
MIN. DMT. -20 deg F. @ 14.3 psi
Shell, head, jacket & jacket head thickness .165 in
Johns-Manville 814 insulation and stainless sheathing
28 in. ID x 37 1/2 in. straight side. Dish top & bottom
5 in. top flanged opening for agitator
Driven by 0.5 HP/.373 kw Lightnin drive
Stainless steel shaft with removable (set screws)
3 pitched turbine blades and stabilizer ring
Approx. 8 in. blade span. Serial #957007
PDF Drawing available upon request
