Ono sokki vx-1100 vibration pickup calibrator
Ono sokki vx-1100 vibration pickup calibrator

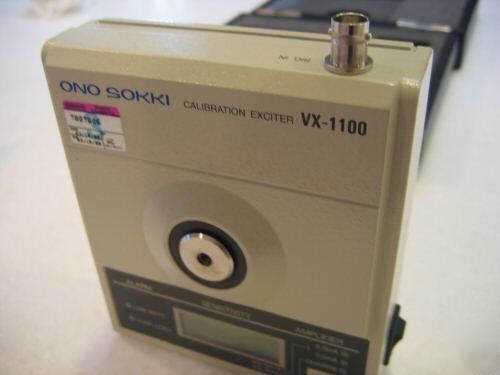

Ono Sokki VX-1100 Piezioelectric Vibration Pickup Calibrator
* Description: The VX-1100 is a compact calibrator used for piezoelectric type acceleration pickup, which has been widely used for measuring vibration. Since an exciter, a sensor amplifier and a display are integrated on the unit together, direct reading of sensitivity is possible when sensor outputs are directly input. The calibrator excites the sensor at a frequency of 159 Hz and acceleration of 10 m/s2 rms, and sensor outputs can be used as calibration signals for a vibration measuring system. Features include:
Suitable for acceleration pickup of both charge output and built-in amplifier types.

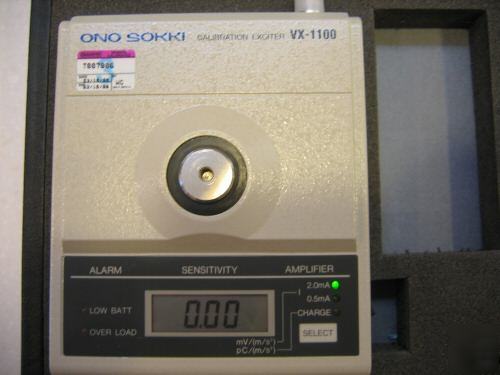

Adoption of digital indicator allows direct reading of sensitivity.
Operates on dry battery for as long as 20 hours.

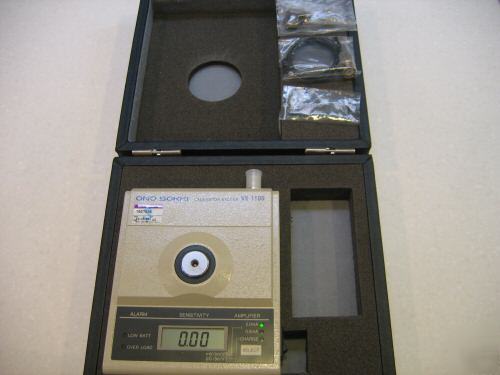

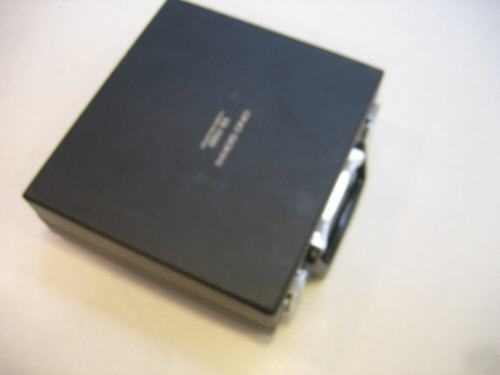

A carrying case is provided to make carrying easy.
0.01 to 19.99 mV/(m/s2) or pC/(m/s2 )
Applicable pickup weight

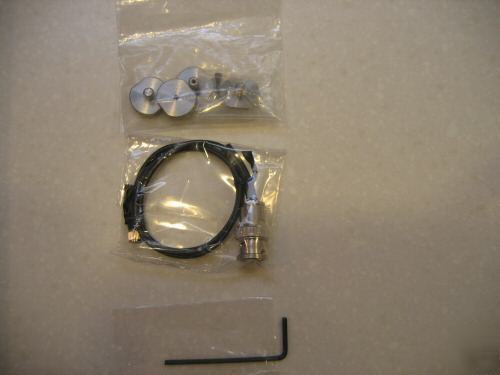

dia. 20 mm, mounting screw provided
Approx. 20 hours (continuous use)
Operating temperature range
Operating humidity range
90% RH or less (with no condensation)
120 (W) x 50 (H) x 140 (D) mm
* Cosmetic Condition: Excellent
* Working Condition: Presumed Good but Untested. Came out of working calibration lab.
* Other Comments / Notes: Calibration sticker expired 03/15/06
