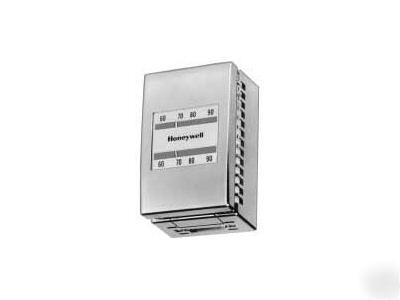

Pneumatic thermostat honeywell TP970A2145 2 pipe da
Pneumatic thermostat honeywell TP970A2145 2 pipe da
A two-pipe,direct acting, single setpoint, pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems.
Replacement kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.
* Single Action Direct Acting
* Airflow Usage 0.011 scfm (5.2 mL/s)
* Includes Thermostat, universal adapter, wall plate and universal satin chrome cover
* Comments Convertastat Kit Dimensions (in.) 3 1/4 in. high, 2 in. wide, 1 5/8 in. deep Dimensions (mm) 83 mm high, 51 mm wide, 41 mm deep Mounting Type Wall
* Maximum Operating Pressure (psi) 25 psi
* Maximum Operating Pressure (kPa) 170 kPa
* Operating Temperature (F) 100 F maximum
* Operating Temperature (C) 38 C maximum
* Storage Temperature (F) 150 F maximum
* Storage Temperature (C) 66 C maximum,
* Setpoint Range (F) 60 F to 90 F Setpoint
* Throttling Range (F) 2 F to 10 F (factory set 4 F)
* Throttling Range (C) 1 C to 5 C (factory set 2 C)
* Type Thermostat Description Pneumatic Thermostat Direct Acting, Heating
