Bridgeport vertical milling machine, no. 12BR (16235)
Bridgeport vertical milling machine, no. 12BR (16235)
Bridgeport, 1-1/2 HP, V-Speed, Chrome Ways, 9" x 36" P.F. Tbl., 1969 Our stock number: 16235 MODEL...................................12BR
SERIAL NUMBER...........................20527 Year: 1969
Table Size..............................9" x 36"
Longitudinal Travel, Manual.............24"
Longitudinal Travel, Power Feed.........20-1/2"
Cross Travel............................12"
Knee Vertical Travel....................16"
Ram Travel..............................12"
Quill Travel............................5"
Spindle Taper...........................R-8
Spindle Speeds, Variable................60 to 4500 RPM
Spindle Diameter........................1.875"
Quill Diameter..........................3.375"
Feeds...................................(3) 1.5, 3, 6 IPR
Head Swivel (Right/Left)................90 Degrees
Head Tilt (Up/Down).....................35 Degrees
1-1/2 HP Spindle Motor, 1730 RPM 230/460/60/3
Servo Type 150 Power Feed On Table

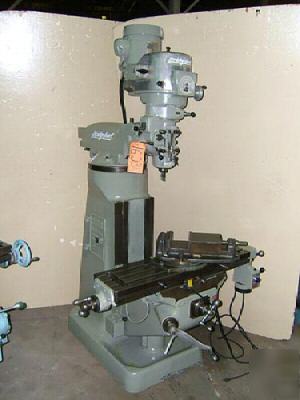

NOTE: Mill Vise in picture does NOT go with mill.
Approximate Weight......................2000 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**********PLEASE READ BELOW**********
**Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge. **
**Skids shown in pictures are not included with the item. **
If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased.
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008
Temporary Email: Eduardogood@dontscrapit.com (Eduardo Good)
