> Mitsubishi M57140-01 intelligent pm hybrid ic

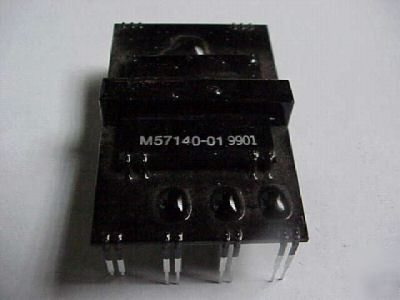

Mitsubishi M57140-01 intelligent pm hybrid ic

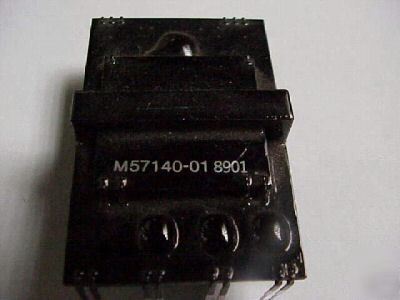

Mitsubishi M57140-01 intelligent pm hybrid ic
I got 7 of them & I am selling them "BY THE PIECE" If you need more, I will relist them as they sell. Also, please check my store where I have more of these and other part numbers listed.
I usually list my store items with a "BEST OFFER OPTION" , so if you don't like my price, please make me a REASONABLE OFFER.
I have no way to test them but they look brand new & as always , I offer a 14 day return for refund policy.
I did some research & found this about the modules:
Part: M57140-01 Category: category Description: Ipm Power Supply Hybrid ic Company: MITSUBISHI HYBRID ICs M57140-01 IPM POWER SUPPLY HYBRID IC TERMINAL NUMBER 1 2 3 12 11 10 9 4 5 6 8 7 E 14 13 F H J G B D C A 14 4, 5, 6 13 12 INPUT DC 20V 11 10 9 1, 2, 3 8 7 OUT PUT 15V, 100mA OUT PUT 15V, 30mA OUT PUT 15V, 30mA OUT PUT 15V, 30mA Description: M57140-01 is an isolated DC-to-DC converter designed to drive IPMs (Intelligent Power Modules). With an input of DC 20V, the module supplies four 15V outputs. Isolation is provided from primary to secondary and also between the secondaries. Interwinding isolation is designed for driving the IPM. Features:: Output Specification: +15V x 4, Total 3W max. Primary-to-secondary Isolation: 2500 VRMS, One Minute Secondary-to-secondary Isolation Voltage: 1500 VRMS, One Minute Compact, Low Profile Design PUSH-PULL CONVERTER CONTROL CIRCUIT Outline Drawing and Circuit Diagram Dimensions A B C D E Inches 2.03 0.71 .39± .06 .18± .06 0.07 Millimeters 51.5 18.0 MAX 12.5±1.5 4.5±1.5 1.8 Dimensions F G H J Inches 0.02 0.08 0.08 1.13 Millimeters 0.55 2.1 2.1 28.8 Applications: IPMs for General Purpose Inver ter and AC Servo Power Source for MOSFET Driving Circuits Ordering Information: M57140-01 Sep.2000 MITSUBISHI HYBRID ICs M57140-01 IPM POWER SUPPLY HYBRID IC Absolute Maximum Ratings, VIN = 20V, Ta = 25 °C unless otherwise specified Item Input Voltage Load Current Symbol VIN IL Topr Tstg Pd Test Conditions Terminals 4 , 5 , 6 - 1 , 2 , 3 Terminals 14 - 13 , 12 - 11 , 10 - 9 Terminals 8 - 7 Limit 25 30 100 -10 ~ +75 -20 ~ +85 1.5 2500 1500 Units Volts mA mA °C °C Watts Vrms Vrms Operating Temperature Storage Temperature Internal Power Dissipation Primary-to-Secondary Isolation Secondary-to-Secondary Isolation There Should be No Condensation 1 Minute 1 Minute Electrical Characteristics, VIN = 20V, Ta = 25 °C unless otherwise specified Characteristics Input Source Voltage Output Voltage Symbol VIN VO Test Conditions Direct Current Min. 18 13.5 Ty p. 20 15.0 Max. 22 16.5 Units Volts Volts Between Pins 10 - 9 , 12 - 11, 14 - 13, IL = 30mA Between Pins 8 - 7 , IL = 100mA 13.5 15.0 33 110 5 16.5 10 Volts mA mA % Peak Load Current ILP Reg-out Between Pins 10 - 9 , 12 - 11, 14 - 13 Between Pins 8 - 7 Load Regulation Between Pins 10 - 9 , 12 - 11, 14 - 13, IL = 0 ~ 30mA Between Pins 8 - 7 , IL = 0 ~ 100mA 7 70 12 % % Efficiency Between Pins 10 - 9 , 12 - 11, 14 - 13, IL = 30mA Between Pins 8 - 7 , IL = 100mA 70 % Application Circuit 8 + 33µF 7 10 + 10µF 9 + VIN = 20V 330µF M57140-01 12 + 1, 2, 3 10µF 11 14 + 10µF 13 IL VC IL VC IL VC IL VC 4, 5, 6 Sep.2000 MITSUBISHI HYBRID ICs M57140-01 IPM POWER SUPPLY HYBRID IC Application Circuit P R + C AMP SG U 14 13 0 12 +15 0 11 10 +15 M57140-01 R 1 2 1, 2, 3 6 + 50V 47µF 0 7 +15 AMP SG 9 0 8 + C AMP SG W R + C AMP SG V +15 11 , 12 2.2µF + 5 4, 5, 6 INPUT DC113V-380V M57120L-01 + 50V 330µF R R TO STABILIZE WHEN NOT LOADED C TO SMOOTH OUTPUT VOLTAGE + C AMP SG AMP SG IPM N
