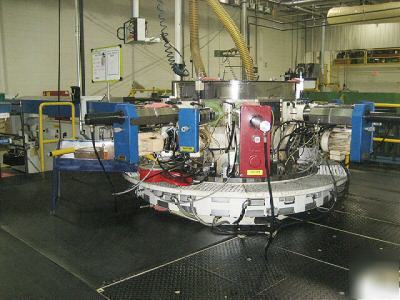

#9845 - hydromat 16-station rotary transfer machine
#9845 - hydromat 16-station rotary transfer machine
HYDROMAT MODEL HB-32/45-16 16-STATION ROTARY TRANSFER MACHINE
Number of stations, horizontal 16
Number of stations, vertical 8
Weight of basic machine 8,000 lbs.
Tool spindle unit size 20/50, 30/60 & 40/80
Consisting of heavy duty cast iron ring with 16 horizontal hand scraped toolspindle mounting ports on a reinforced welded base with Dyad vibration damper. High precision hydraulically actuated indexing table with 16 fixtures for standard B32/45 draw type collets. Table indexing and location provided by hydraulically actuated rack and pinion and Hirth type multi-tooled coupling. Repeatability accuracy .0002". Control feature allows table to be half-indexed to provide ease of tool change.
Hydromat Standard Electrical Control Cabinet:
With GE 90-30 programmable controller and IEC motor starters. Machine voltage: 460 volts, 3 phase, 60 cycle. Control voltage: 115 volts A.C. and 24 volts D.C.
With 50 gallon (approx.) reservoir to provide system hydraulic fluid for machine operations. Automatic heating-cycle assures consistent operation and the accumulator maintains constant pressure.
Swiveling Pendant Operator Control:
Includes message center consisting of a 2-line display providing the operator with total machine control from any location around machine
Lexan chip guard to enclose machine tooling area
Modem for system communication (telephone service)
Steel operator's platform deluxe
Around machine elevated for easy access to tooling area. Includes safety railing around platform and hand rails as steps where applicable.
Coolant Tank/Conveyor system dual bag filter:
200 Gallons (approx.) coolant reservoir with magnetic separator and dual independant bag filters used for filtering coolant supplied to collets. Automatic chip conveyor equipped with hinged scraper conveyor.
**NOTE - Machines has 7,254,331 Cycles**
12' Electronic magazine bar feeder
Vogel lube system-positive unit pressure
Quick change large type tool heads
