K.O. Lee Radial Grinding Fixture
K. O. Lee Radial Grinding Fixture

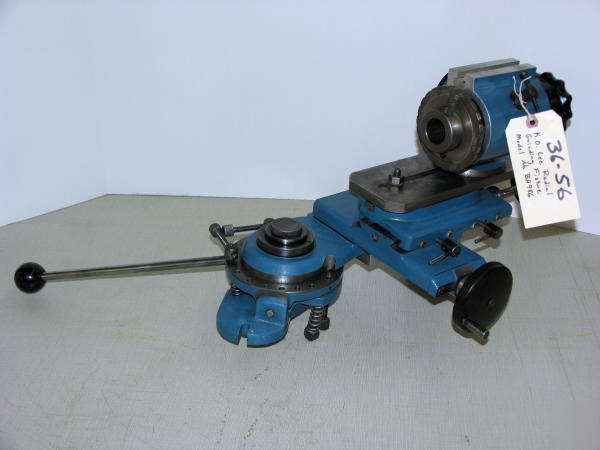

These are precision instruments for generating convex & concave radii on cutting tools. They can sharpen existing radii on end mills, ball end mills (1/2" or larger), various milling cutters with or without mounting arbors, and other smaller single point tools, router bits and similar cutters.
The basic fixture is also used to generate a radius on shank mounted balls, burr blanks, ball end mills and other such semi-ball forms. It can generate a convex or concave radius on the grinding wheel when form grinding.
Roller bearings are employed between the fixture base and its pivoting worktable which swings 360°. Center gauge(s) provide s simplified method of centering any tool by locating the tool against the gauge. Crossfeed and longitudinal feed screws of the lower & upper slide sections are calibrated in .001" (.050"/revolution) and controlled by large handwheels for easy set-up or adjustment during grinding. Dials can be re-set to zero without moving the slides. Adjustable dovetail ways can be locked.
The lever arm allows the fixture to be tilted away from the grinding wheel for quick checking of work. The entire pivoting saddle and turntable may be fixed at a tilt up to 15° from the horizontal.
Cutter surfaces which are tangent to radii ground may be ground in sequence using machine longitudinal table feed.
(bushings needed for smaller sizes): 1-1/4"
Distance of Spindle Nose to Fixture Pivot Line: 4"
