(25) G5V-1 spdt 5VDC relays, 1A, small omron 5V relays
(25) G5V-1 spdt 5VDC relays, 1A, small omron 5V relays

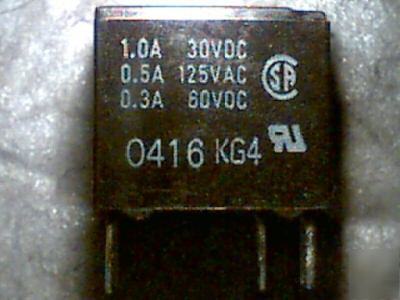

(25) G5V-1 SPDT 5VDC RELAYS, 1 AMP,
New old stock DIP (NOS ICs). Contact Current Specifications: Very high quality Omron 1.0A @ 30VDC, 0.3A @ 60VDC, and 0.5A @ 125VAC. Small and compact (10mm x 7.5mm x 12mm). While these relays are rated at 5VDC, and I certainly don't recommend that you power relays out of specification, I have run them continuously at low-to-moderate ambient temperatures at up to 12VDC across the relay coils, and pulsed them at up to 24 volts across the coils. For continuous operation and relay coil voltages exceeding about 8 VDC, I usually wire in an appropriate size resistor in series with the coil to not overdrive the coil (I also usually add an appropriate size capacitor wired parallel to the series resistor for voltages up to about 30 volts to substantially speed up mechanical operation). Just by using series resistors, I need only this one 5V relay type for virtually all of my board relay functions from 5 VDC to 30 VDC! Mechanical operation up to 10 Hz for 5 volts coil voltage. Mechanical service life up to 5 million operations. Conforms to FCC Part 68 voltage surge. Ideal for telecommunications, security, computers and robotics.
NOTE: Later availability not guaranteed. LIMITED QUANTITY.
Seller listing codes: LD093, LR094-S01, LR095-S01, LS000-R00, MM000, CC000.
