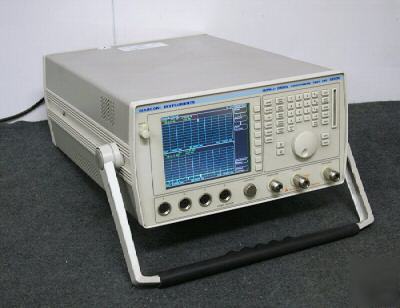

Marconi / IFR 6200B 10MHz-20GHz Test Set w/Opt 001 NICE
The Marconi 6200B, RF Microwave Test Set, combines the key microwave instruments for scalar network measurements, power and frequency measurements in a compact and portable product.
The Marconi 6200B, RF and Microwave Test Sets (MTS) are an innovative range of instruments. An MTS combines the key microwave instruments for scalar network measurements, power and frequency measurements into a compact and portable product. Powerful fault location software adds the ability to measure return loss (VSWR) against distance to speed up fault identification on coaxial or waveguide transmission lines.
6200B Scalar Analyzer Specifications:
* Number of Inputs: Four (A, B, C and D)
* Detection Modes: AC and DC
* Dyname Range: AC Detection: 80 dB (-60 to +20 dBm, 623XA), (-54 to +26 dBm, 623XL), 85 dB typical (-65 to +20 dBm, 623XA), (-59 to +26 dBm, 623XL) DC Detection: 70 dB (-50 to +20 dBm, 623XA), -44 to +26 dBm, 623XL)
* Measurement Points: User selected from 2 to 1601
* Number of Channels: Two channels, two measurements may be made per channel allowing a total of four simultaneous measurements.
* Settable Range: 40 ms to 500 s.
* Measurement Times: 401 points: <200 ms , 1601 points: <800 ms
* Direct Voltage Input Range: Input A, B, and C: 0 V to -4.5 V or 0 v to +4.5V , Input D: 0V to -9B or 0V to +9 V
* Averaging: 1 to 1000(applied per measurement)
* Smoothing: Aperture settable from 0.01 to 20$ of spain, resolution 0.01
* Path Calibration (Normalization) Types: Through, short/open, short, open
* Instrumentation Accuracy: <+/- 0.05%
* For full specs / data sheet CLICK HERE
* Option 001 = minimum leveled power -80 dBm
* CALIBRATION AVAILABLE at extra charge
* MANUAL AVAILABLE at extra charge
* FOR YOUR "PEACE OF MIND" and CONVENIENCE any TESTED and FUNCTIONAL TEST EQUIPMENT WE LIST CAN BE CALIBRATED for an ADDITIONAL CHARGE by AST GLOBAL'S OWN IN HOUSE CALIBRATION LAB. Note: Email or call for Calibration Quote.
* Unit has been THOROUGHLY CHECKED by our CERTIFIED LAB TECHNICIAN and is FULLY FUNCTIONAL.
* VERY GOOD COSMETIC CONDITION
* This Unit Comes with a 5 Day Right of Return.
* Over size 1 - Please see explanation below.
* Power cords, accessories, probes, manuals, software, etc. are not included unless specifically stated.
If after reading the entire text, the item description, and clicking on our links and your question still is not answered, please use the Ask Seller A Question link above. Using our regular email address will cause delays in answering your question.
* ACCESSORIES: Power cords, accessories, probes, manuals, software, etc. are NOT included unless specifically stated.
