Tektronix 11403A oscillscope m/f, 3 ghz (11401A 11402A)
Tektronix 11403A oscillscope m/f, 3 ghz (11401A 11402A)

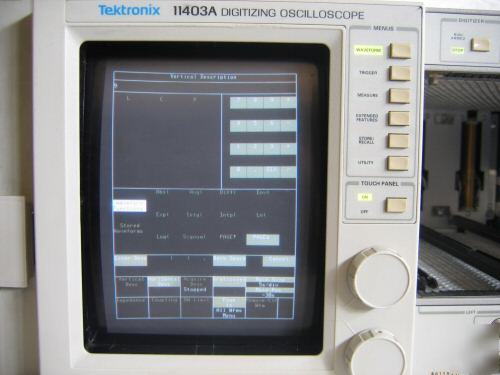

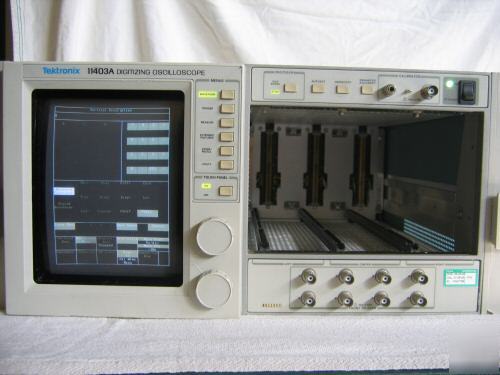

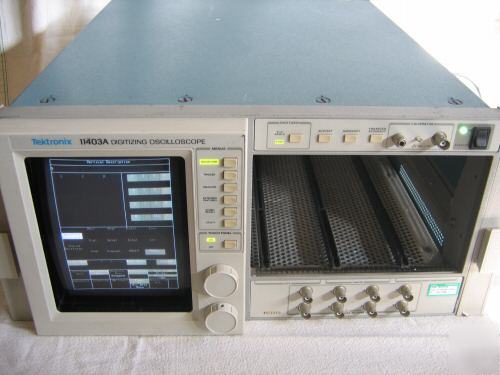

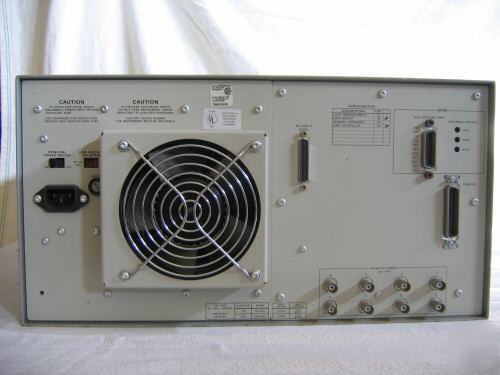

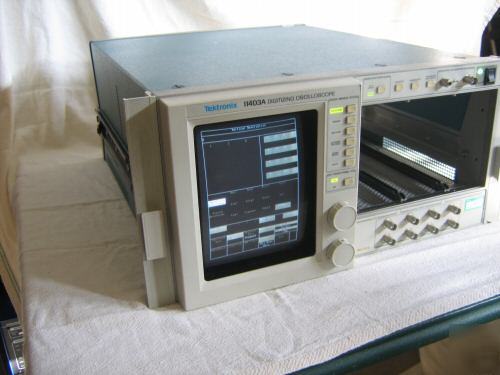

Tektronix (Tek) 11403A Digitizing Oscilloscope Mainframe, 3 GHz
* Description: The Tektronix 11403A is the top of the class in the family of 11400 series. It is similar to both the 11401A and the 11402A, but offers more features and better performance. A large color display, built in FFT, 10-bit vertical resolution, and the ability to acquire up to 6 channels at 1 GHz make this instrument a value when compared to other scopes of similar specifications. A selection of modules for this mainframe include the 11A32, 11A33, 11A34, 11A52, 11A71, 11A72 and the 11A81. Additional features and specifications for the 11403A include:
* Vertical Resolution: 10-bit, 14-Bits with Averaging
* Acquire up to Six Channels at 1GHz Concurrently
* Deskew Nulls out Channel Timing Differences - including Probes
* Internal Calibration capability for a Vertical Error of 1% or Less
* Bandwidth and Number of Channels Are Based on Amplifiers Selected
* Operating Mode and Amplifiers Selected Determine Number of Channels that Can Be Acquired
* Working Condition: Most items have been tested, but only to the extent of our capabilities. If you would like us to perform some sort of test or diagnosis on the item, please contact us.
* Other Comments / Notes: Units sold with what you see. Nothing extra is included unless noted in the description. Power cords are not included in the sale. This 11403A includes the following options:
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
