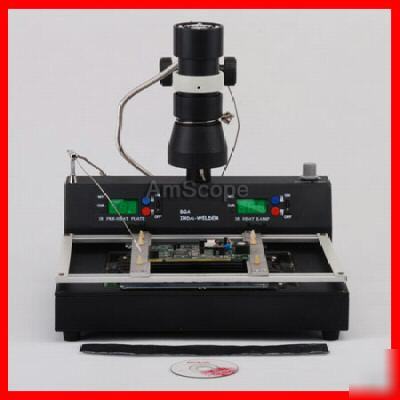

High quality Infrared BGA Large Welder Rework Station
We are a U.S. instrument/equipment supplier carrying a full line of high quality infrared BGA reworking and IRDA welding equipment. All our products are manufactured under the strict quality control guidelines established by ISO 9001: 2000 Standards. Their quality is insured by our return policy and full-coverage warranty! We do more than just sell you a product. We provide immediate support for any issues regarding your purchase. We are only a phone call away. If you have any questions, please feel free to call our toll free number below for assistance:
Callers outside of the USA please call ++ (***) 393 9488
* State-of-the-Art Infrared welding technology
* Infrared heating has good penetration power. When compared with traditional soldering/desoldering station using hot air (sirocco), this infrared desoldering machine greatly reduces demage caused by heat stress.
* Easy operation. Can operate this machine in one day.
* Don't need desoldering tools. This machine can desolder components of 1.4 x 2.0 inch (35-50mm)
* This machine has 800W pre-heating system. Pre-heating area is 9.4 x 7.1 inch (24 x 18cm)
* Precise infrared targeting reduces damages to other parts or components of the circuit. Especially suitable for desoldering / reworking on BGA components
* Suitable for use in repairing desktop computers, notebook computers, etc. Especially suitable for desoldering the north bridges and south bridges of computer boards
* Work area: 14.2 x 9.4 inch (36 x 24cm)
* Infrared heating lamp power: 150W
* Infrared spot size: 2.8 inch (7cm) diameter (5 x 5cm chips)
* Pre-heating area: 9.4 x 7.1 inch (24 x 18cm)
* Infrared heating temperature: 200 ~ 350℃
* Pre-heating temperature: 60 ~ 200℃
* Packing Size: 16.9 x 10.2 x 16.5 inch (43 X 26 X 42cm)
* 1 welding table (main body)
* 1 temperature sensor for infrared lamp
* 1 temperature sensor for chips
* 1 circuit board support (PCB support)
* 1 disc with user's manual contained
* Our rework stations and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. This item comes with 1-year warranty. We carry all of the full-coverage warranty services
* Please allow up to 10 business days for return to be processed.
