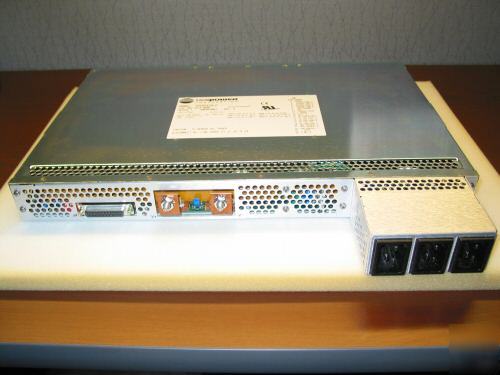

Unipower rectifier 48V25/75A or 1200/3600WATTS 1RU
Unipower rectifier 48V25/75A or 1200/3600WATTS 1RU
Front-End Switcher - PCP & TPCP Series
1U High, Up to 1200 Watts with PFC and Hot-Swap Provision
PowerCassette Internet Hot-Swap Switcher
For PDF data sheet, click here.
For PDF racks data, click here.
For PDF relay adaptor data, click here.
Patents Protected On Front-End Switchers
* Includes Isolated 5V, ¼A Standby Output
* I2C Serial Data Bus Option
* Integral LED Status Indicators
* Low Profile: 1.6 Inches (41mm) High
* Single Hot-Swappable Connector
* 1U, 19†Racks Hold 2 or 3 Units*
* Universal 85 to 264VAC Input
* Optimized Thermal Management
* Control & Monitoring Features
* SEMI F47 Compliant at Hi-Line
Delete “T†prefix to model no. for chassis mount version.
TWO YEAR WARRANTY ON FRONT-END SWITCHERS
NOTE: The table does not show the independent 5V ¼A standby output which is standard on all Front-End Switcher models.

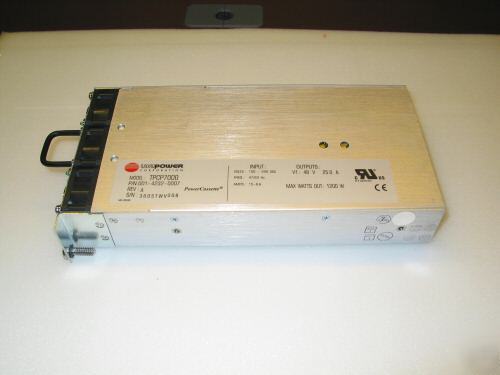

Hot-Swappable Rectifier - Radian Series
RPCP, TPCP, RPCM, TPCM, RPCG, TPCG
Unipower Telecom’s Radian Series are hot-swappable, modular rectifiers which produce up to 1200 watts output. There are 18 different models with different output voltages and power levels. The modules are ultra-compact with power density up to 17 watts per cubic inch. Companion 19-inch shelves hold up to three rectifers which can also be operated in a 2+1 redundant mode. The modules have automatic load sharing and output ORing diodes so they can be hot-swapped while the system is operating. Module output voltage can be controlled by a 0V to +5V analog input.
Green LEDs indicate AC and DC power good. The rectifiers also have control and monitoring features and a +5V standby output. Operating temperature range is -200C to +700C.
* Wide Range Input: 85-264VAC
* Output Voltage: 12 to 54.4VDC
* Power Density to 17W/cu. Inch
Click here to view the datasheet.
Click here to see the relay alarm adaptor datasheet.
NOTE: Add option Code as suffix to model number.
Z option on RPCP,RPCM & RPCG models only applicable when rectifiers are being used with the DSC1000 controller or installed in a Gravitas X100 system.
