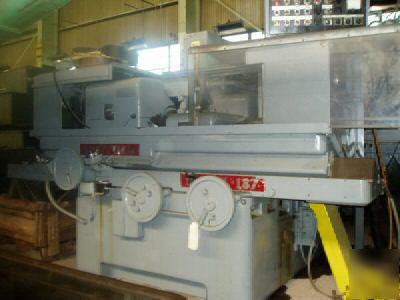

#187C SHEFFIELD "CRUSHTRUE" FORM GRINDER
New 1970, Serial No 401099, Model 187C,
Automatic Plunge Grinding w/Rapid Approach &
Automatic Infinitely Variable Feed Of Wheel Into Work
Air Bearing Work Table To Facilitate Lateral Movement
Extra Hubs - Oil Chiller - Filtration Unit
Work Diameter Ground, Maximum.......... 10"
Work Length Ground, Maximum............ 24"
Work Diameter Ground, Minimum.......... 0"
Swing Over Ways, Maximum............... 11.75"
Form Depth, Maximum.................... 1"
Form Width, Maximum.................... 6"
Form Width w/Spaced Wheels, Maximum.... 9"
Wheelhead Adjustment, Maximum.......... 7"
Wheelhead Rapid Travel, Range.......... .375" to 1.5"
Wheelhead Automatic Feed, Maximum...... 1"
Grinding Wheel Diameter, Minimum....... 20"
Grinding Wheel Diameter, Maximum....... 24"
Grinding Wheel Width, Minimum.......... 1"
Grinding Wheel Width, Maximum.......... 6"
Grinding Wheel Width, Spaced Wheels.... 9"
Grinding Wheel Hole Diameter........... 12"
Platen Swivel Adjustment, Clockwise.... 2-DEGREES
Platen Swivel Adjusment, Counterclock.. 5-DEGREES
Workhead Speeds, Variable Range........ 35 to 800 RPM
Wheelhead Infeed Rate, Range........... .005 to .475 IPM
Crushtrue Feed Rate, Range............. .004 to .075 IPM
Spindle Motor, Horsepower/RPM.......... 30 HP/1170 RPM
PRICE: F.O.B. OUR WAREHOUSE........... $19,500.00
All machines/equipment subject to prior sale.
