> Meister BC10M digital readout +3 linear scales mill dro
Meister BC10M digital readout +3 linear scales mill dro
Meister BC10M digital readout +3 linear scales mill dro

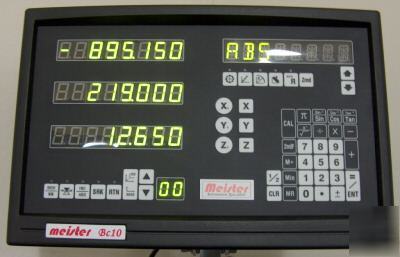

Meister 3-Axis BC10M Digital Readout for Mill with 3 pieces of Glass Scales
Die-cast aluminium display console box.
DRO c/w 3 pieces of linear scales. Travel stroke from 4" to 36" (100 to 900mm).
[ Overall length = Travel + 5 inches]
* Mounting swivel arm & dust cover for display box;
* Operation manual (English).
* One year warranty direct from factory.
Functions of Meister BC-10M Digital ReadOut:
* "1/2" - value is divided by 2.
* Absolute/Increment co-ordinate interchange
* Recall the last coordinate positions, which is good for repeated work.
* RTN - paused any time to return to normal mode, then continue from where you left off. Put display to "Sleep" during lunch break.
* Mechanic Zero Position Memory- re-establish work-piece zero position after power failure.
* Bolt Hole Circle (Pitch Circle Diameter)
* Set up to 99 datumn positions
THANKS TO BOB FOR THESE BEAUTIFUL PHOTOS OF HIS BRIDGEPORT.
Bob installed the MX3 for the quill on his Bridgeport.
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Resolution selectable: 10um, 5um and 1um.
* Quantizing error: +/- 1 count
* Power Source: AC 110 - 230V, 50 - 60Hz.
* Auto-switching power supply.
* Temperature range: Operating 0 ~ 40 deg C;
* Display: 8-digits green color LED display
* Dimension: 29 x 19 x 10 cm (11 x 7.0 x 4.0 inches)
* Grating pitch: 0.02mm (50LP/min)
* Accuracy: ±0.005 mm or 0.0002" (at 20 deg C).
* Ever scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec.
* Output Signal: Square wave signals, TTL.
* Standard 10ft armoured cable.
Meister BC-10L 2 or 3 Axis DRO for Lathe,
Meister BC-10E, 3 Axis DRO for EDM
Glass scales come in these standard length:
Metric: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, and 900 mm.
Inches: 4.,5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36 and 40 inches.
Our factory makes scales above 36 inches - 1100, 1200, 1300, 1400, 1500, 1600, 1800 and 2000 (80 inches). Please contact us for more details.
Look at Don's Grizzly G0463 Mill-Lathe. Wonderful job done here . . . Thanks for these photos.
Image hosted by Photobucket.com
Image hosted by Photobucket.com
Image hosted by Photobucket.com
* Factory will take 2 ~ 3 days to process your order.
* Transit time is about 9 ~ 14 days; subjected to delay in transit.
* We take great care in packing to make sure your DRO system arrive in good condition.
