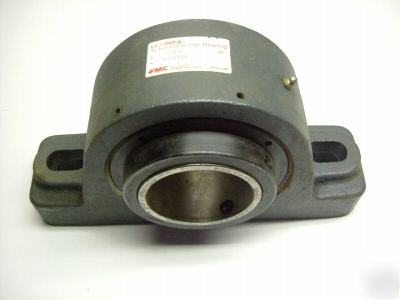

Linkbelt single locking collar spherical roller bearing
Linkbelt single locking collar spherical roller bearing
LINK BELT SINGLE LOCKING COLLAR SPHERICAL ROLLER BEARING
Diameter of the Shaft3.4375 in
Base to Centerline Height3.75 in
Distance Between Bolt Holes10 in
D - Length Through Bore 4.375 in
Assembled with Extended Inner Ring With Separable Outer Ring Yes
Distance from Housing Cast Face to Inner Ring Long Hub Face0.9375 in
Distance from Housing Centerline to Cap Face3 in
Distance from Housing Centerline to Inner Ring Long Hub Face2.65625 in
F - Mounting Bolt Size0.875 in
Housing Configuration One-piece
Housing Type Pillow Block – Fixed
Locking Collar Outside Diameter4.90625 in
Locking Collar Type One Setscrew (Spring) Locking Collar
Mounting Bolt Hole Slot Length1.625 in
Pillow Block Type Two-Bolt Pillow Block
Type of Seal Floating Multi-labyrinth (H)
Available Seal Type E Lip Seal H Labyrinth SealE7 Triple Lip Seal
Product Feature Summary Broad range of sealing options Cast iron housing Corrosion resistant powder coating Factory set clearance & lubrication
|Special Feature 2-Bolt Pillow Block
